PRECISION THAT EMPOWERS CONFIDENCE

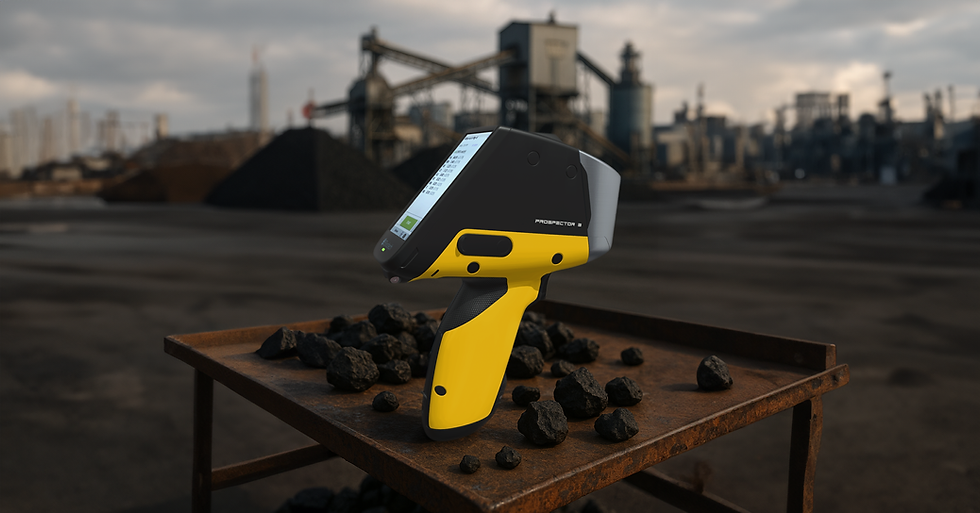

ProSpector 3 Advance - Handheld XRF Analyzer for Versatile Applications
The fastest, lightest and smallest XRF gun on the market
PMI Analysis
Mining / Minerals
Coal Analysis
RoHS / WEEE
Car Catalyst
Soil Analysis
Revolutionize
XRF Testing Capabilities with ProSpector 3 Advance
Large Folding Display
ProSpector 3 Advance has the largest touch screen (4.3”) available in hand-held XRF analyzers.The unique design of the folding display allows for convenient operation in the lab stand with no need to use an external PC.
World’s fastest XRF analyzer (throughput above 500 000 cps – more than four times faster than any other handheld XRF) – highest accuracy within the shortest measurement time, excellent precision
Fast Analysis
Highest Mobility & IP Protection
Up to 16 hours of autonomous operation on a single battery charge, hot battery swap.
Dustproof and waterproof instrument body, with IP-65 ingress protection rating.
Specification :
Digital X-ray Source
Digital X-Ray Source digiX-40
Anode: Rh
Voltage: 40 kV
Current: 200 uАmp
Power: 5W
Filters : 8 positions filter changer
Collimator : Automatic 2-position collimator changer
X-Ray Detector
Type: Large area SDD
Area: 10, 30, or 40 mm2
Detector Window : Graphene, 1um
Energy resolution: <140 eV @ 5.9 keV
Count rate: 500,000 cps
Detection Range : Mg-U
Processor
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels
Display & UI
Display: 4.3″ Foldable Touchscreen Display
Connectivity: USB, Bluetooth, Wi-Fi , GPS (Optional)
Camers : CCD camera for sample view / Macro View (Optional)
Ingress Protection
IP-65 ingress protection rating
Compliance
Radiation Safety - SR 814.501(1994) : NF-C74 100 (193)
ISO 9001 : 2015 / ISO 9001: 2018
CE certification
EN IEC 61010-1 (2011)
EN IEC 61326-1 (2006)
Get specific solutions for your specific needs
Derive your specific xrf testing solutions with Elvatech XRF for your specific testing requirements. Consult our product team.
