ProSpector 2 LE Handheld XRF Analyzer

Features :

Fast Operation

High Speed of Operation- Measurement Time takes few seconds

Elvatech ProSpector 2 LE High speed of operation @ above 500 000 CPS count rate. Dynamically Adaptive Shaping (DAS) DPP developed by Elvatech combined with the Fast SDD detector makes the ProSpector 2 the fastest handheld XRF analyzer on the market.

Ingress Protection

IP 54

ProSpector 2 LE provides an IP54 rating to provide protection dust and water

Touch Screen Display

4.3 inches Touch Screen Display

ProSpector 2 LE has an inbuilt 4.3 inches touch screen display with intuitive user interface and auto rotate function

Extensive, Editable Alloy Grade Library

ASTM/ AISI/ DIN

Identify hundreds of alloy grades out of the box, then add your own. The built-in grade library covers common stainless, tool, nickel, cobalt, copper, aluminium and titanium alloys — and because it's fully editable, you can load the exact grades your operation uses.

Element Detection Range (Mg-U)

Light Element Analysis

Elvatech ProSpector 2 LE has an element detection range from Mg-U . It can analyze heavy and light elements alloys.

Specifications :

Dimensions (W × H × D)	242 × 230 × 78 mm
Weight	1.4 kg ( With Battery)
Excitation Source	X-ray tube, 40 kV / 200 µA / 4 W; Rh anode (W, Ag options)
Primary Beam Filtration	Automatic 5-position filter changer; single collimator
Detector	Large-area Silicon Drift Detector (SDD), 30 mm²; energy resolution < 140 eV @ 5.9 keV (Mn Kα); count rate up to 500,000 cps
Element Range	Mg (Z=12) – U (Z=92) — high sensitivity for light elements
Signal Processing	Proprietary DAS (Dynamically Adaptive Shaping) DPP; 80 MHz sampling; 4096-channel MCA
Analysis Algorithms	Fundamental Parameters (FPA) and Empirical calibrations
Display	4.3" color touchscreen
Operating System	Windows Embedded Compact 7
USB	USB port for direct connection to a PC and data transfer
Wireless	Wi-Fi and Bluetooth (both optional)
Data Storage / Transfer	Removable MicroSD card for on-board storage and data export
PC Software	ElvaX™ desktop software for connection to an external PC
Camera	CCD camera for analysis-area viewing (optional)
Corrections	Automatic temperature and barometric (air-density) correction
Battery	Li-ion battery, over 10 hours continuous operation
Ingress Protection	IP54 — dust protected and protected against water splashing

Tell us what you're working with

Tell us about the material, the throughput and the accuracy your work requires. We reply within one business day — usually much sooner.

Request a Quote Add us on LINE

Industries & Applications :

The ProSpector 2 LE is a versatile handheld XRF analyser used across a wide range of industries where precise elemental identification of both heavy and light elements is required. Its Silicon Drift Detector (SDD) technology enables accurate measurement of light elements such as magnesium, aluminium, and silicon — extending its capability beyond standard handheld analysers.

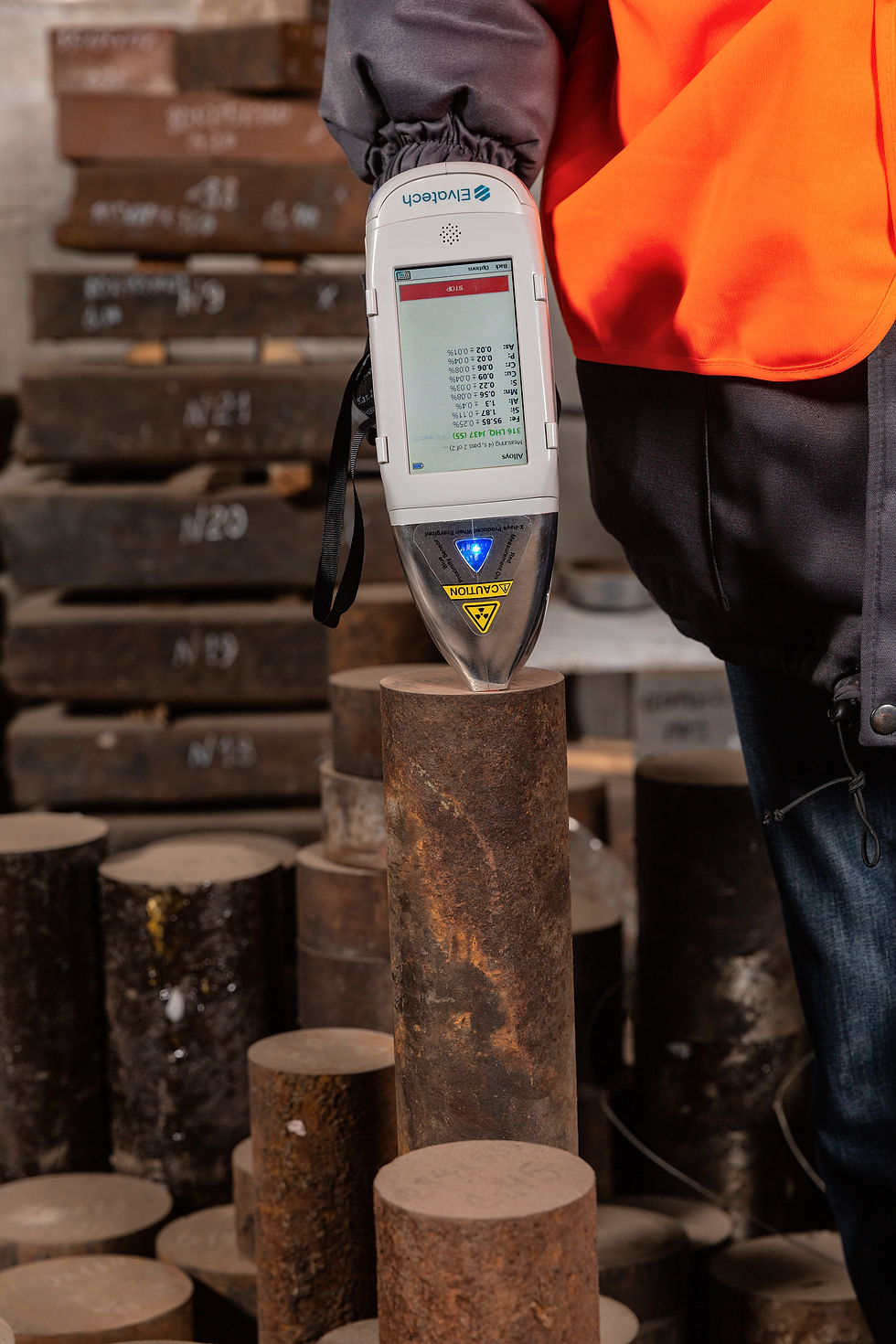

Metal Recycling & Scrap Sorting : Used in scrap yards and recycling facilities to identify and grade mixed metals including steel, stainless steel, aluminium alloys, copper alloys, and nickel superalloys. Particularly effective for aluminium alloy separation, where light element detection is essential for accurate grade identification.

Manufacturing & Positive Material Identification (PMI) : Applied in production and quality control environments to verify that metals and alloys meet specified grades before use in fabrication, welding, or assembly — critical in aerospace, automotive, oil and gas, and construction industries.

Mining & Mineral Analysis : Used on-site at mines and exploration sites to analyse the elemental composition of ores, rocks, and mineral samples. Enables geologists and mining teams to identify valuable deposits, assess ore quality, and make informed extraction decisions directly in the field without sending samples to an external laboratory.

Cement & Construction Materials Analysis : Applied in cement production and construction material testing to measure key elemental components including calcium, silicon, aluminium, iron, and magnesium. Supports quality control throughout the production process, from raw material intake to finished product verification, ensuring consistency and compliance with industry specifications.
